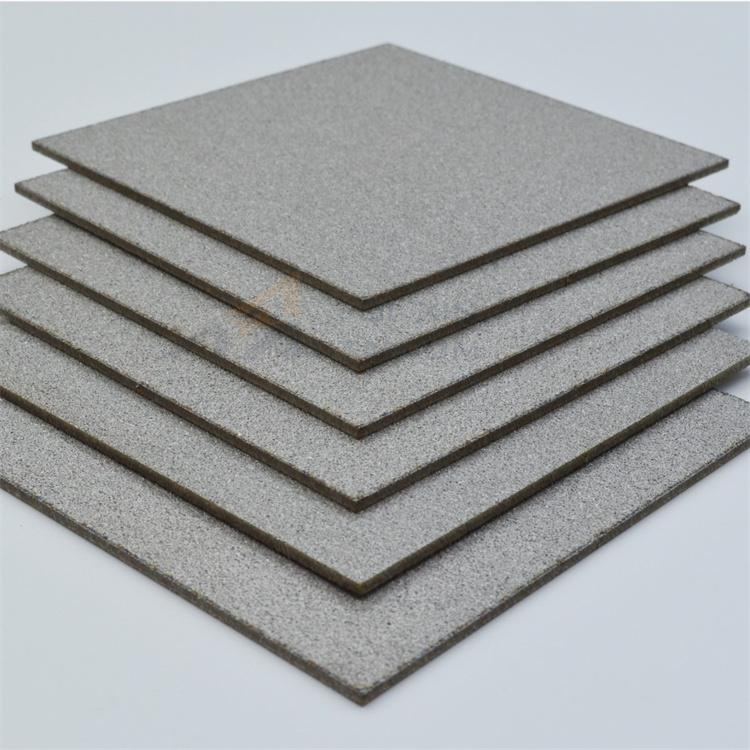

A sintered titanium filter for water is a kind of filter element made of titanium powder through a sintering process, which is widely used in water treatment.It is made of high – purity industrial titanium powder (purity 99.6% or higher). The production process includes powder screening, cold isostatic pressing to form a pre – formed body, and then high – temperature and high – vacuum sintering to obtain a porous titanium filter element.
Advantages
High Filtration Accuracy: The pore structure is uniform, the pore size distribution is narrow, and the filtration accuracy can reach 0.22 – 50μm, which can effectively intercept various impurities in water.
Good Permeability: The porosity is 35% – 45%. The high – porosity structure makes the filtration resistance small, the water flow large, and the permeation efficiency high.
Excellent Corrosion Resistance: Titanium has good chemical stability, is resistant to acid and alkali corrosion, and has antioxidant properties, so it can be used in various complex water quality environments.
High – temperature Resistance: It can generally be used normally below 280℃, and can also work stably in some high – temperature water treatment occasions.
No Secondary Pollution: The surface particles are not easy to fall off, which will not cause secondary pollution to the water, and meets the requirements of food hygiene and pharmaceutical GMP.
Reusability: It can be cleaned by methods such as back – flushing and ultrasonic cleaning, and has strong regeneration ability, and the service life is generally several times that of membrane filter elements.
Applications
Security Filtration in Water Treatment Systems: It is used for security filtration in ultrafiltration (UF), reverse osmosis (RO), and electrodeionization (EDI) systems in water treatment, as well as filtration after ozone sterilization to protect subsequent equipment and ensure water quality.
Seawater Desalination: It is used for pre – filtration before reverse osmosis in seawater desalination to remove suspended solids and other impurities in seawater and improve the efficiency and service life of the reverse osmosis membrane.
Food and Beverage Industry: It is used for the clarification and filtration of beverages, white wine, beer, mineral water, etc. to remove impurities, microorganisms, etc. in the liquid and improve the quality and shelf life of products.
Pharmaceutical Industry: It is used for the removal of impurities, de – carbonization filtration, and fine filtration in the production of liquid drugs and active pharmaceutical ingredients to ensure the purity and quality of drugs.
Company Profile
Qixin titanium Co.Ltd, is a leading manufacturer specializing in coated titanium anode. With an extensive historyand a wealth of expertise, we have been dedicated to providing high-quality products and solutions to variousindustries for many years.Our company was established 2006, and since then, we have accumulated 18 years of valuable manufacturingexperience. This experience has enabled us to master the art and science of producing top-notch coated titaniumanodes that meet the most stringent quality standards.We take pride in our state-of-the -art manufacturing facilities and a team of highly skilled professionals. Ourengineers and technicians are experts in the field, constantly researching and innovating to improve our productsand processes.
production
1. Substrate treatment: it needs to be treated by roughing, cleaning and removing oil, which can increase the compactness of catalytic.
2. Brushing coating:After substrate treatment, it will be proceeded brush coated. The main coated content is platinum group metal, which is a kind of mixed solution.Then, heat treatment will be going on after drying.The whole procedure need to be repeated many times. This method is better to form thin oxide catalytic that is lamellar adhere to substrate surface.
Why choose us?
1. Superior Material Quality & Durability
Corrosion Resistance: Titanium’s inherent resistance to acids, alkalis, and chloride-rich environments ensures long service life in demanding applications like cobalt electrowinning or wastewater treatment.
High Strength & Stability: Titanium maintains structural integrity under high currents and temperatures, reducing the risk of deformation or degradation.
Customized Coatings: We apply advanced oxide coatings (e.g., ruthenium, iridium, platinum group metals) tailored to your process, enhancing conductivity, catalytic activity, and longevity.
2. Technical Expertise & Custom Solutions
Tailored Design: We analyze your process parameters (current density, electrolyte composition, temperature) to design anodes that maximize efficiency.
R&D-Driven Innovation: Our team stays ahead of industry trends, integrating the latest coating technologies (e.g., mixed metal oxides, dimensionally stable anodes – DSAs) for performance gains.
Testing & Validation: Pre-production prototypes undergo rigorous testing to ensure compliance with your specifications.
3. Cost-Effectiveness & Sustainability
Lower Total Cost of Ownership (TCO):
Longevity reduces replacement frequency compared to traditional anodes (e.g., lead, graphite).
Energy-efficient designs cut electricity costs in large-scale operations.
Eco-Friendly: Titanium is recyclable, and our coatings minimize metal leaching, aligning with environmental regulations.
4. Reliable Service & Support
Global Supply Chain: Timely delivery through the streamlined manufacturing and logistics network.
Technical Support: Post-installation guidance, troubleshooting, and maintenance recommendations.
Compliance Assurance: Anodes meet international standards (e.g., ISO, SGS) and can be certified for specific industries (e.g., mining, water treatment).
FAQ
1. How to ensure the product quality?
All products make 100% inspection before shipment also we can provide the MTC Material Test Certification.
2. Can you print our Logo on the products?
Sure, and we welcome the customerized products.
3.What about the payment terms?.
T/T, L/C, Paypal, Western Union, Escrew and MoneyGram etc are all accepted.
4.What is the necessary information for an inquiry?
Product name, specification, material grade and quantity.
5.Can we get a free sample before cargo production?
Sure.
