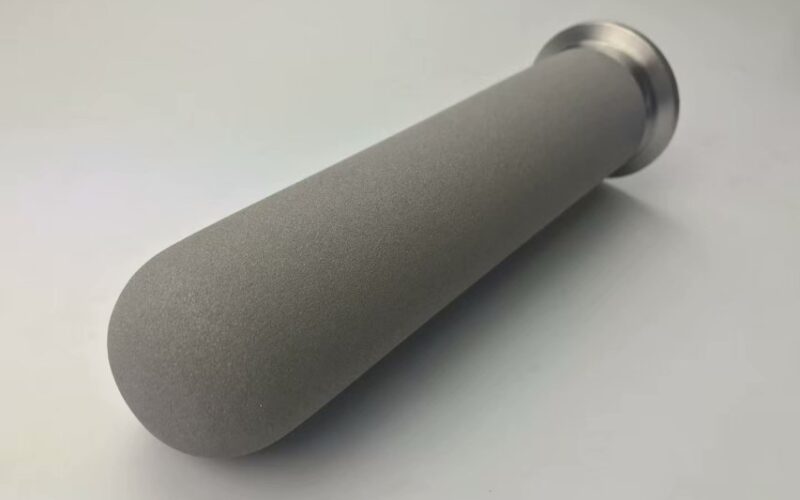

A sintered stainless steel porous bubble generator is a device that uses the porous structure of sintered stainless steel to generate fine bubbles.It is mainly composed of stainless steel porous materials, end caps, and connectors. The stainless steel porous material is the core part, usually made of 316L or 304 stainless steel, which is formed by sintering stainless steel powder. The end caps and connectors are used to fix the porous material and connect it with other equipment.Gas enters the liquid through the tiny pores of the sintered stainless steel porous material. Due to the small pore size, a large number of fine bubbles are generated. These fine bubbles have a large specific surface area, which can significantly increase the gas – liquid contact area, thereby improving the gas – liquid mass transfer efficiency.
Characteristics
Good corrosion resistance: Stainless steel materials such as 316L have excellent corrosion resistance and can be used in a variety of acidic, alkaline, and other corrosive media environments.
High – temperature and pressure resistance: It has good heat resistance and can work stably in a certain high – temperature range. At the same time, it has high mechanical strength and can withstand a certain pressure.
Uniform bubble size: The pore size of the sintered stainless steel porous material is relatively uniform, which can generate bubbles with relatively consistent sizes, ensuring the stability and uniformity of the gas – liquid mass transfer process.
Easy to clean and maintain: The surface of the stainless steel material is smooth, and it is not easy to adsorb impurities and scale. It can be cleaned by methods such as backwashing, chemical cleaning, and high – temperature sterilization, and has a long service life.
Applications
Food and beverage industry: In beer brewing, it is used for carbonation and aeration of beer, which can make the beer have a rich and fine foam. In the production of beverages, it can be used for dissolving gases such as carbon dioxide and oxygen to improve the quality and taste of beverages.
Wastewater treatment industry: It is used for aeration in wastewater treatment processes, providing oxygen required for the growth and metabolism of microorganisms, and promoting the degradation and removal of organic matter and pollutants in wastewater.
Bioreactor field: In bioreactor systems, it is used to introduce gases such as oxygen and carbon dioxide, which can improve the mass transfer efficiency of gases, meet the oxygen demand of cell culture and fermentation, and promote the growth and metabolism of microorganisms and cells.
Aquaculture industry: It can be used for aerating aquaculture water bodies to increase the dissolved oxygen content in water, providing a good living environment for aquatic organisms.
Company profile
Qixin titanium Co.Ltd, is a leading manufacturer specializing in coated titanium anode. With an extensive historyand a wealth of expertise, we have been dedicated to providing high-quality products and solutions to variousindustries for many years.Our company was established 2006, and since then, we have accumulated 18 years of valuable manufacturingexperience. This experience has enabled us to master the art and science of producing top-notch coated titaniumanodes that meet the most stringent quality standards.We take pride in our state-of-the -art manufacturing facilities and a team of highly skilled professionals. Ourengineers and technicians are experts in the field, constantly researching and innovating to improve our productsand processes.
Production
1. Substrate treatment: it needs to be treated by roughing, cleaning and removing oil, which can increase the compactness of catalytic.
2. Brushing coating:After substrate treatment, it will be proceeded brush coated. The main coated content is platinum group metal, which is a kind of mixed solution.Then, heat treatment will be going on after drying.The whole procedure need to be repeated many times. This method is better to form thin oxide catalytic that is lamellar adhere to substrate surface.
Why Choose Us?
Unrivaled Product Quality
Crafted from premium titanium with precision and strict quality control, our anodes use advanced coating methods like thermal decomposition. Catalytic layers such as RuO₂-IrO₂ or SnO₂-Sb₂O₃ boost corrosion resistance, electrochemical activity, and lifespan.
Exceptional Performance
With low overpotential, our anodes cut energy use by up to 30% in electrochemical oxidation. High current efficiency enables fast degradation of organic pollutants, heavy metals, and PFAS across various wastewater types.
Customized Solutions
We customize anode coating, thickness, and structure. Our experts analyze your project to ensure cost-effective, optimized performance.
Extensive Industry Experience
Years of work in textiles, pharmaceuticals, and mining give us deep expertise for proactive problem-solving.
Comprehensive Technical Support
Our support covers installation, maintenance, troubleshooting, and staff training.
Sustainable and Environmentally Friendly
Designed to reduce energy use and heavy metal release, our anodes prioritize sustainability, with ongoing R&D for improvements.
Competitive Pricing
Despite top quality, optimized processes and supply chains make our anodes affordable.
Choose us for superior quality, performance, and service. Contact us to achieve your wastewater treatment goals.
Quality assurance and after-sales service
1. We promise that our substrate is high quality,acceleratd life test.The coating solution is configured according to the certain proportion.
2.With the high technology and equipment,All of our tecnical personnel have abundant experience,and our workers are very skilled.During the production of the Titanium anode, each process must carry on the strict examination,Such as the detection of surface rougghness,The quality of coating solution,coating evenness and so on.
3.We have our own production,sales and after-service department.We are usually dedicated to provide customers with high quality and reasonable price product.Most importantly ,we can provide the efficient service.
4.Each procedure will be carefully detected in the technical staff to compelete.accomplish the order in time and delivery on time.
5.During our cooperation,if you have any problem ,you can contact us at anytime,we will do our umost to help you.
