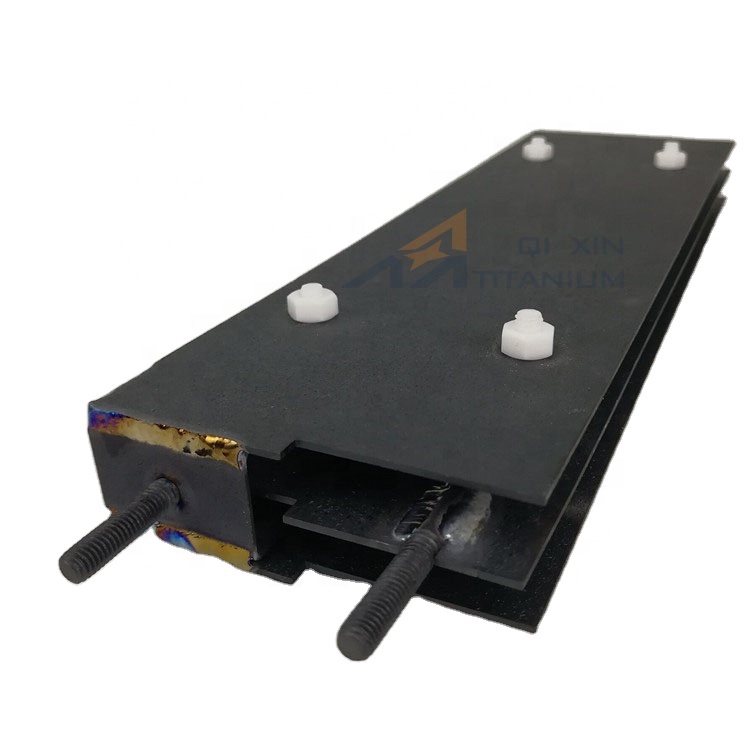

MMO Titanium Coating Dsa Anode Electrode refers to the dimensionally stable anode (DSA) with a mixed – metal oxide (MMO) coating on a titanium substrate.It is usually made of industrial pure titanium (Gr1/Gr2).The coating materials are mainly noble – metal oxides such as ruthenium (Ru), iridium (Ir), and tantalum (Ta). Through nanoscale particle dispersion technology, a dense protective layer is formed. For example, the RuO₂ – IrO₂ composite oxide is suitable for the chlorine – evolution system, and the IrO₂ – Ta₂O₅ mixed oxide is suitable for the sulfate system.
Advantages
High Corrosion Resistance: The titanium substrate is highly stable in most acid – base environments, and with the protection of the coating, it can withstand the strong – oxidation environment during electrolysis for a long time. Its service life is much longer than that of traditional graphite anodes and lead – alloy anodes. For example, in the chlor – alkali industry, the service life of metal anodes can reach more than 5 to 7 years, while that of graphite anodes is only 8 months.
Excellent Electrocatalytic Performance: The coating material can significantly reduce the over – potential of the electrolysis reaction, reduce energy consumption, and improve the reaction rate. For instance, in the case of a current density of 1000A/m², the chlorine – evolution over – potential is ≤200mV, which is much better than that of traditional graphite anodes (＞500mV).
Size Stability: During the electrolysis process, the distance between the electrodes will not change, ensuring that the electrolysis operation is carried out under stable cell voltage, and the cell voltage fluctuation range can be controlled within ±2%.
Application Fields
Chlor – alkali Industry: It is used in the electrolysis of brine to produce chlorine, caustic soda, and hydrogen. The RuO₂ – based coating has a low chlorine – evolution over – potential, which can improve the production efficiency and reduce energy consumption.
Metal Electrolysis and Refining: Such as the electrolytic production of nickel, cobalt, copper and other metals, as well as the refining of precious metals (gold, silver, rhodium, etc.). It can deposit metals on the cathode to form high – purity metal products.
Water Treatment: It is used in sewage treatment, seawater desalination and other fields. For example, in sewage treatment, it can oxidize and decompose organic pollutants and harmful substances in water through electrochemical reactions.
Cathodic Protection: As an auxiliary anode, it is combined with a potentiostat, a test post, and a reference electrode to form a cathodic protection system, which is suitable for various environments such as soil, fresh water, and seawater, and can protect metal structures from corrosion.
Who we are?
Qixin titanium Co.Ltd, is a leading manufacturer specializing in coated titanium anode. With an extensive historyand a wealth of expertise, we have been dedicated to providing high-quality products and solutions to variousindustries for many years.Our company was established 2006, and since then, we have accumulated 18 years of valuable manufacturingexperience. This experience has enabled us to master the art and science of producing top-notch coated titaniumanodes that meet the most stringent quality standards.We take pride in our state-of-the -art manufacturing facilities and a team of highly skilled professionals. Ourengineers and technicians are experts in the field, constantly researching and innovating to improve our productsand processes.
Production
Brush coating.
Specific operation as follows:
Firstly,making the coating solution according to the type and the area of the platinum electrode; secondly ,put the solution on the surface evenly, then put them into the drying furance for drying; thirdly,we need to oxidate in the high temperature oxidation furance;Lastly, dry it to room temperature. Then,repeat these steps until you run out the configuration solution.
Certification
Qixin is ISO 9001:2015 certified and own more than 10 patents. All its processes and procedures are documented and controlled in accordance with these standard. Qixin has strict product quality control procedure, from raw material to finished product, all the process is tested qualified to assure high quality product.
With technical engineers experienced for more than 18 years of constant research and production for titanium electrode and its application in various industries, Qixin can offer a very high level of technical support and products, which are among its most remarkable characteristics.
FAQ
1. How to ensure the product quality?
All products make 100% inspection before shipment also we can provide the MTC Material Test Certification.
2. Can you print our Logo on the products?
Sure, and we welcome the customerized products.
3.What about the payment terms?.
T/T, L/C, Paypal, Western Union, Escrew and MoneyGram etc are all accepted.
4.What is the necessary information for an inquiry?
Product name, specification, material grade and quantity.
5.Can we get a free sample before cargo production?
Sure.
