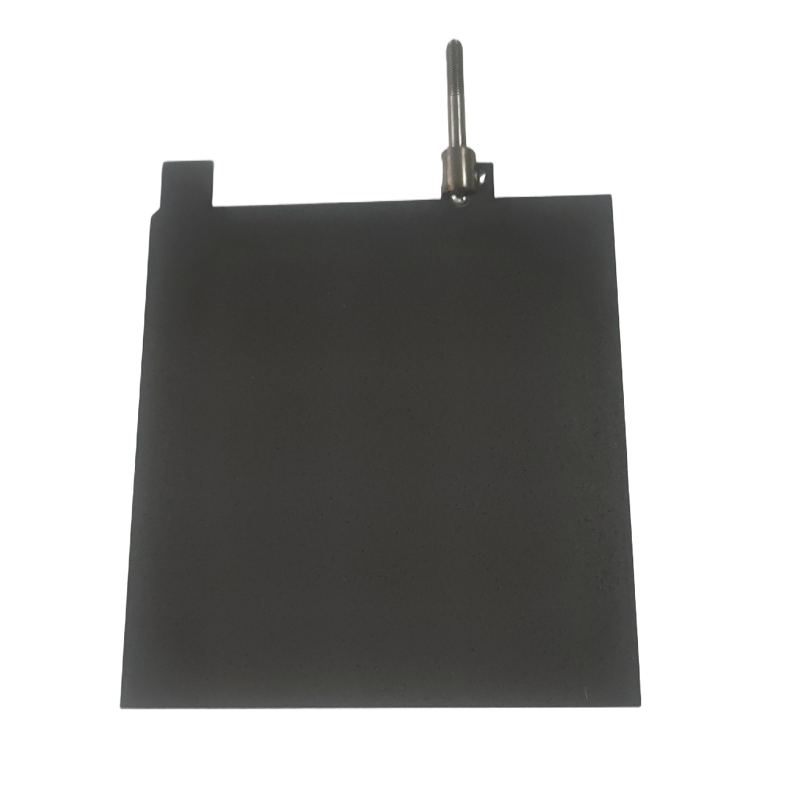

Iridium Coated Titanium Plate Anode

Iridium coated titanium plate anode is a sophisticated electrochemical device that plays a crucial role in various industrial processes. This innovative technology combines the exceptional properties of titanium with the catalytic prowess of iridium to create a highly efficient and durable electrode. The iridium coating, typically applied through advanced techniques like electrodeposition or thermal decomposition, forms a thin yet robust layer on the titanium substrate. This coating significantly enhances the anode’s electrocatalytic activity, corrosion resistance, and longevity. When subjected to an electric current in an electrolyte solution, the iridium coating facilitates the oxidation reactions at the anode surface, enabling efficient electron transfer and promoting desired electrochemical processes. The synergy between the iridium coating and titanium base results in an anode that combines excellent conductivity, chemical stability, and extended operational life, making it indispensable in applications ranging from water treatment to metal extraction.

The Structure and Composition of Iridium Coated Titanium Plate Anodes

1.Titanium Substrate: The core of an iridium coated titanium plate anode is its titanium substrate. Titanium is selected for its remarkable combination of strength, lightness, and corrosion resistance. This metal forms a natural oxide layer when exposed to air, providing an additional barrier against degradation. The titanium plate is carefully machined and prepared to ensure optimal surface conditions for the subsequent coating process. Its low density and high strength-to-weight ratio make it ideal for large-scale industrial applications where weight considerations are crucial.
2.Iridium Coating: The iridium coating is the heart of the anode’s functionality. Iridium, a member of the platinum group metals, is renowned for its exceptional catalytic properties and resistance to harsh chemical environments. The coating is typically applied in a thin layer, often just a few micrometers thick, but its impact on performance is substantial. The iridium layer dramatically increases the anode’s surface area at a microscopic level, creating numerous active sites for electrochemical reactions. This enhanced surface area translates to improved current efficiency and lower overpotential, key factors in the anode’s effectiveness.
3.Interface Layer:Between the titanium substrate and the iridium coating, manufacturers often incorporate an interface layer. This intermediary layer serves multiple purposes. It enhances the adhesion between the titanium and iridium, preventing delamination under operational stress. Additionally, it can act as a diffusion barrier, minimizing any potential inter-diffusion of elements between the substrate and coating. Materials like tantalum or mixed metal oxides are commonly used for this interface, chosen for their compatibility with both titanium and iridium. The precise composition and thickness of this layer are carefully controlled to optimize the iridium coated titanium plate anode’s overall performance and longevity.

The Electrochemical Principles Behind Iridium Coated Titanium Plate Anodes

1.Oxidation Reactions at the Anode Surface:The primary function of an iridium coated titanium plate anode is to facilitate oxidation reactions. When immersed in an electrolyte solution and subjected to an electric current, the anode becomes the site where electrons are removed from chemical species in the solution. The iridium coating plays a pivotal role in this process. Its unique electronic structure allows it to efficiently catalyze the oxidation of water molecules, generating oxygen gas and protons. This oxygen evolution reaction is fundamental in many electrochemical processes, including water treatment and chlorine production. The iridium coating’s ability to lower the activation energy for these reactions significantly enhances the anode’s efficiency and reduces the overall energy requirements of the system.
2.Electron Transfer Mechanisms:The efficiency of an iridium coated titanium plate anode is largely dependent on its ability to facilitate smooth electron transfer. The iridium coating, with its unique electronic properties, acts as an excellent conductor for electrons. As oxidation reactions occur at the anode surface, electrons are transferred from the reactant species to the anode. The iridium coating’s high conductivity ensures that these electrons are rapidly channeled through the anode and into the external circuit. This efficient electron transfer is crucial for maintaining high current densities and minimizing energy losses in the form of heat. The interplay between the iridium coating’s electronic structure and the species in the electrolyte solution determines the rate and specificity of the electrochemical reactions.
3.Overpotential and Current Efficiency:A key advantage of iridium coated titanium plate anodes is their ability to operate with low overpotential. Overpotential refers to the additional voltage required above the thermodynamic potential to drive an electrochemical reaction at a desired rate. The catalytic properties of iridium significantly reduce this overpotential, allowing for more efficient operation. This reduction in overpotential translates to lower energy consumption and higher current efficiency. Current efficiency, the ratio of actual product formed to the theoretically expected amount based on the charge passed, is notably high for these anodes. The combination of low overpotential and high current efficiency makes iridium coated titanium plate anodes particularly attractive for large-scale industrial applications where energy costs and process efficiency are paramount considerations.

Applications and Advantages of Iridium Coated Titanium Plate Anodes

1.Water Treatment and Purification:Iridium coated titanium plate anodes have revolutionized water treatment processes. In wastewater treatment plants, these anodes are employed in electrochemical oxidation systems to break down persistent organic pollutants and eliminate pathogens. The robust nature of the iridium coating allows these anodes to withstand the harsh conditions often present in wastewater, including high chloride concentrations and fluctuating pH levels. The anodes’ ability to generate powerful oxidizing agents in situ, such as hydroxyl radicals and ozone, makes them particularly effective in treating recalcitrant contaminants that resist conventional treatment methods. Additionally, in desalination plants, these anodes play a crucial role in electrolytic chlorination processes, producing chlorine for disinfection while maintaining long-term stability in high-salinity environments.
2.Chlor-Alkali Industry:The chlor-alkali industry, which produces chlorine, sodium hydroxide, and hydrogen through the electrolysis of brine, heavily relies on iridium coated titanium plate anodes. These anodes excel in chlorine evolution reactions, offering high selectivity and efficiency. The iridium coating’s resistance to chlorine attack ensures prolonged anode life, even under the demanding conditions of industrial chlor-alkali cells. The anodes’ ability to operate at high current densities without significant degradation contributes to increased production capacity and reduced operational costs. Furthermore, the dimensional stability of these anodes helps maintain consistent cell geometry, crucial for optimizing energy distribution and maximizing process efficiency in large-scale chlor-alkali plants.
3.Cathodic Protection Systems:In corrosion prevention, iridium coated titanium plate anodes find extensive use in cathodic protection systems. These systems are vital for protecting large metal structures such as pipelines, ships, and offshore platforms from corrosion in aggressive environments. The anodes serve as the source of protective current, creating an electrochemical cell that effectively shifts the protected structure to a more negative potential, thereby inhibiting corrosion processes. The durability and consistent performance of iridium coated titanium anodes make them ideal for long-term cathodic protection installations, where reliability and minimal maintenance are essential. Their ability to operate efficiently in both freshwater and seawater environments, coupled with their resistance to scaling and fouling, ensures sustained protection over extended periods, significantly extending the lifespan of critical infrastructure.
