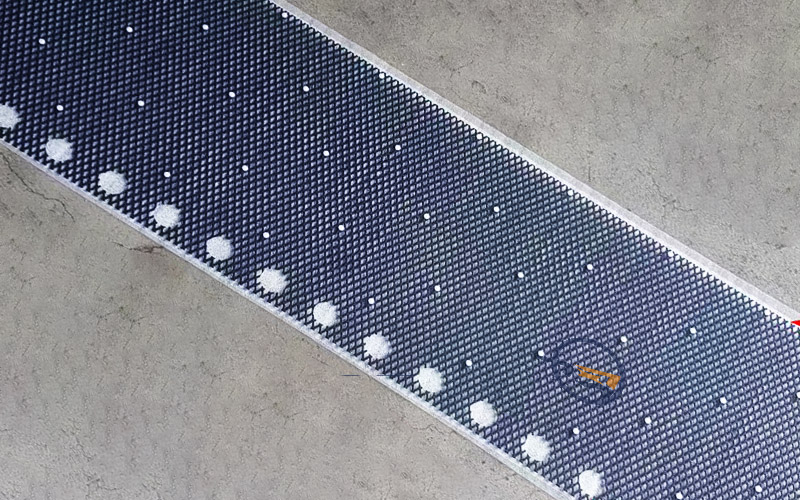

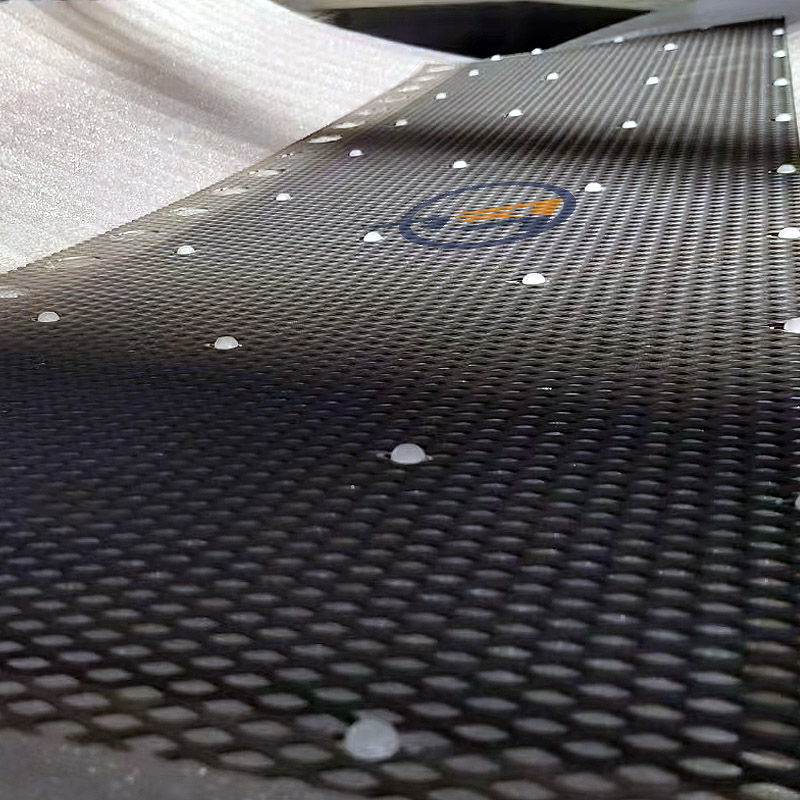

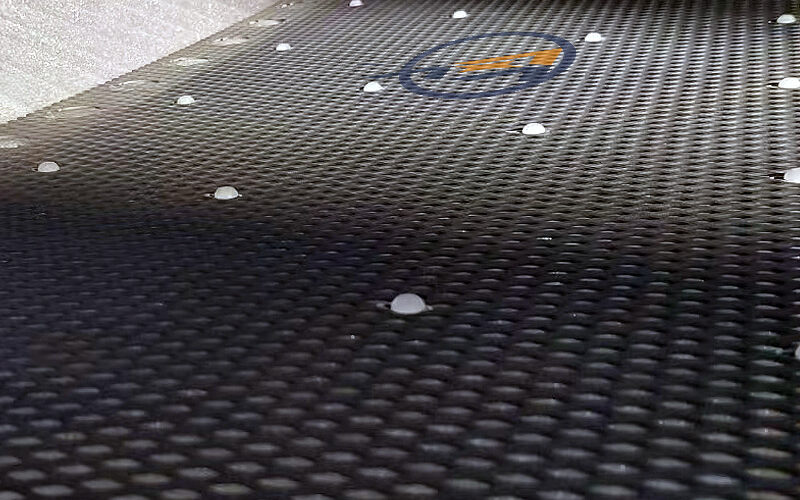

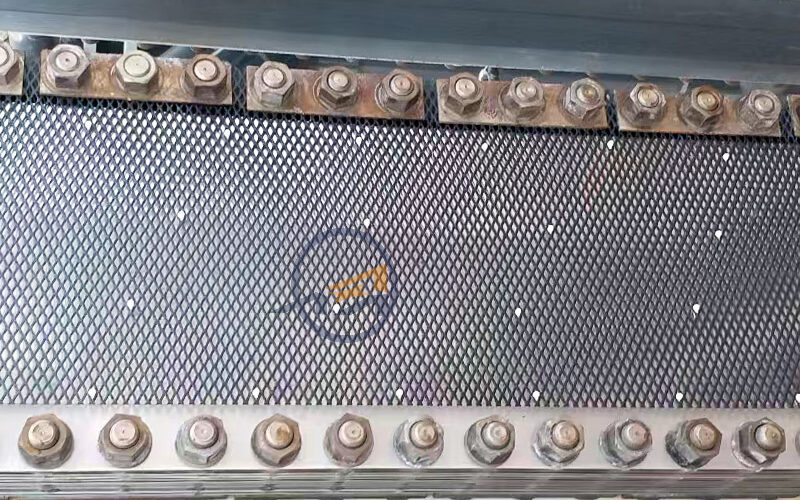

Titanium anode for chlorine production by electrolysis of seawater, is used to generate chlorine or other chlorine-containing compounds through electrolysis of seawater for purposes such as sterilization and antifouling. The basic principle of chlorine production by electrolysis of seawater is to apply direct current to the cathode and anode of the seawater electrolytic cell, causing electrolysis of seawater and generating effective chlorine or other chlorine-containing compounds.
Control Principle of Chlorine Production from Seawater
The control principle of chlorine production from seawater is to control the magnitude of the current and the electrolysis time, so that the chloride ions in seawater and the oxygen ions in water molecules undergo redox reactions to generate chlorine gas and hydrogen gas.
- The chloride ions (Cl-) in seawater and water molecules (H2O) undergo redox reactions to generate chlorine gas (Cl2) and hydrogen gas (H2).
- In the electrolytic cell, the current is passed through two electrodes. The positive electrode is called the anode and the negative electrode is called the cathode.
- The chloride ions in seawater on the anode are oxidized to chlorine gas, and the water molecules on the cathode are reduced to hydrogen gas.
- By controlling the magnitude of the current and the electrolysis time, the generation amounts of chlorine gas and hydrogen gas can be regulated, thereby controlling the efficiency and output of chlorine production.
Chlorine production by electrolysis of seawater is an important and innovative technology with significant applications.
The principle of this process is relatively straightforward. When an electric current is passed through seawater in an electrolytic cell, the chloride ions (Cl-) present in the seawater undergo oxidation at the anode. This oxidation process results in the formation of chlorine gas (Cl2). The overall chemical equation for this reaction can be represented as: 2Cl- → Cl2 + 2e-.
Chlorine has several notable chemical properties. It is a highly reactive element and readily combines with many other elements and compounds. Chlorine can react with metals to form metal chlorides. For example, it reacts with iron to form iron chloride and iron chloride. Chlorine also reacts with hydrogen to form hydrogen chloride (HCl), a gas that dissolves readily in water to form hydrochloric acid. When chlorine is dissolved in water, it undergoes a disproportionation reaction to form hypochlorous acid (HClO) and hydrochloric acid. Hypochlorous acid is a strong oxidizing agent and is responsible for the disinfecting properties of chlorine in water treatment.
The advantages of chlorine production by electrolysis of seawater are numerous. Firstly, seawater is an abundant and readily available resource, eliminating the need for complex and costly transportation or storage of raw materials. Secondly, the process is environmentally friendly as it does not produce harmful by-products. Additionally, the chlorine generated can be used immediately for various purposes such as disinfection, water treatment, and industrial processes.
However, there are also certain precautions to be taken when using this technology. One of the main concerns is the potential corrosion of the electrolytic equipment due to the harsh marine environment. Special materials and coatings need to be used to ensure the longevity and efficiency of the equipment. Another important aspect is the safety of handling and storing the generated chlorine gas, as it is a toxic and reactive substance. Adequate ventilation and safety measures must be in place to prevent any accidents.
chlorine production by electrolysis of seawater offers a promising and sustainable solution for various applications. Understanding the principles, including the chemical properties of chlorine, the advantages, and precautions associated with this technology allows us to maximize its benefits while ensuring safe and effective operation.
Company Profile
Qixin titanium Co.Ltd, is a leading manufacturer specializing in coated titanium anode. With an extensive historyand a wealth of expertise, we have been dedicated to providing high-quality products and solutions to variousindustries for many years.Our company was established 2006, and since then, we have accumulated 18 years of valuable manufacturingexperience. This experience has enabled us to master the art and science of producing top-notch coated titaniumanodes that meet the most stringent quality standards.We take pride in our state-of-the -art manufacturing facilities and a team of highly skilled professionals. Ourengineers and technicians are experts in the field, constantly researching and innovating to improve our productsand processes.
production
1. Substrate treatment: it needs to be treated by roughing, cleaning and removing oil, which can increase the compactness of catalytic.
2. Brushing coating:After substrate treatment, it will be proceeded brush coated. The main coated content is platinum group metal, which is a kind of mixed solution.Then, heat treatment will be going on after drying.The whole procedure need to be repeated many times. This method is better to form thin oxide catalytic that is lamellar adhere to substrate surface.
Why choose us?
1. Superior Material Quality & Durability
Corrosion Resistance: Titanium’s inherent resistance to acids, alkalis, and chloride-rich environments ensures long service life in demanding applications like cobalt electrowinning or wastewater treatment.
High Strength & Stability: Titanium maintains structural integrity under high currents and temperatures, reducing the risk of deformation or degradation.
Customized Coatings: We apply advanced oxide coatings (e.g., ruthenium, iridium, platinum group metals) tailored to your process, enhancing conductivity, catalytic activity, and longevity.
2. Technical Expertise & Custom Solutions
Tailored Design: We analyze your process parameters (current density, electrolyte composition, temperature) to design anodes that maximize efficiency.
R&D-Driven Innovation: Our team stays ahead of industry trends, integrating the latest coating technologies (e.g., mixed metal oxides, dimensionally stable anodes – DSAs) for performance gains.
Testing & Validation: Pre-production prototypes undergo rigorous testing to ensure compliance with your specifications.
3. Cost-Effectiveness & Sustainability
Lower Total Cost of Ownership (TCO):
Longevity reduces replacement frequency compared to traditional anodes (e.g., lead, graphite).
Energy-efficient designs cut electricity costs in large-scale operations.
Eco-Friendly: Titanium is recyclable, and our coatings minimize metal leaching, aligning with environmental regulations.
4. Reliable Service & Support
Global Supply Chain: Timely delivery through the streamlined manufacturing and logistics network.
Technical Support: Post-installation guidance, troubleshooting, and maintenance recommendations.
Compliance Assurance: Anodes meet international standards (e.g., ISO, SGS) and can be certified for specific industries (e.g., mining, water treatment).
Certification
Qixin is ISO 9001:2015 certified and own more than 10 patents. All its processes and procedures are documented and controlled in accordance with these standard. Qixin has strict product quality control procedure, from raw material to finished product, all the process is tested qualified to assure high quality product.
With technical engineers experienced for more than 18 years of constant research and production for titanium electrode and its application in various industries, Qixin can offer a very high level of technical support and products, which are among its most remarkable characteristics.
FAQ
1. How to ensure the product quality?
All products make 100% inspection before shipment also we can provide the MTC Material Test Certification.
2. Can you print our Logo on the products?
Sure, and we welcome the customerized products.
3.What about the payment terms?.
T/T, L/C, Paypal, Western Union, Escrew and MoneyGram etc are all accepted.
4.What is the necessary information for an inquiry?
Product name, specification, material grade and quantity.
5.Can we get a free sample before cargo production?
Sure.
