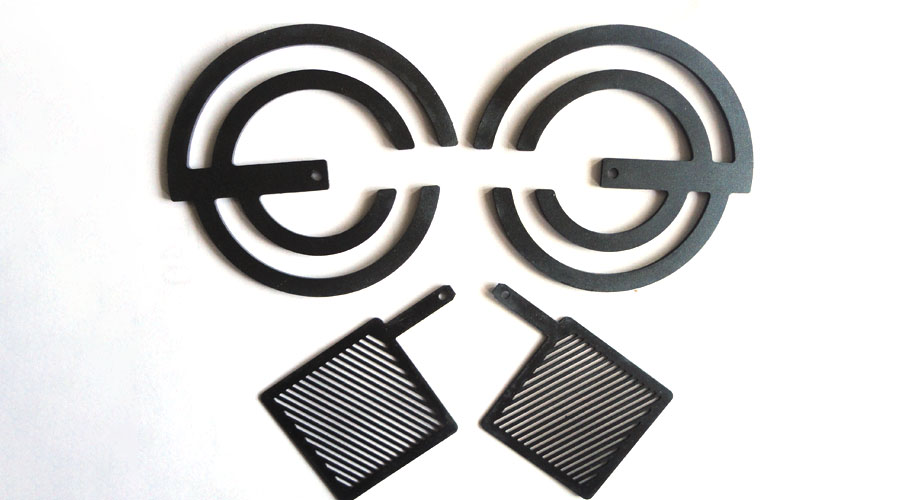

Titanium anode for electrolyzed water. Electrolyzed water is used to produce H2 and O2. Our company has independently developed and produced it over many years. It has stable quality, is environmentally friendly without secondary pollution, has low overpotential, and has good energy-saving effects, which can save 15-20% of energy. The appearance shapes of titanium anodes for electrolyzed water include plates, meshes, tubes, wires, etc. Special-shaped parts can be customized and produced according to users’ special requirements.
Alkaline water, acidic water, negative potential water.
Titanium anode for electrolyzed water
Alkaline electrolytic cell for electrolyzed water machine. The cell body is made of non-toxic ABS plastic material. Inside, it can be equipped with ruthenium-iridium coating, platinum-iridium coating, platinum-plated titanium electrode and imported ion exchange membrane from Japan. The pH value is 8~11.
The alkaline electrolytic cell for electrolyzed water machine has stable and good electrolysis effects and is widely used in household electrolyzed water machines, disinfection water machines and large water plants.
The ruthenium-iridium coated titanium electrode and platinum-plated titanium electrode independently developed and produced by us, combined with imported ion exchange membrane, have stable electrolysis effects and have been widely used in household electrolyzed water machines and disinfection water machines, and have been promoted and used in large water plants. They have low energy efficiency, stable electrolysis and long service life.
Titanium anode is a key component in electrolyzed water machines. The quality of the titanium anode directly affects the quality of the whole water machine. When selecting a titanium anode, it should be reasonably selected according to different working properties.
In the field of water treatment, coated titanium anodes need to meet the following basic requirements:
(1) Have good electrical conductivity;
(2) Strong corrosion resistance;
(3) Good mechanical strength and processing performance;
(4) Long working life;
(5) Good electrocatalytic washing performance.
In the field of water treatment, especially in the electrolysis process of water, such as in the process of generating acidic and alkaline ionized water, there are various strong oxidizing substances in the water, such as O3, H2O2, HCLO, etc., and the anode is often reversed. Therefore, special functional electrodes must be used. After years of research, our company has developed a long-life electrode suitable for the field of water treatment – titanium metal coated electrode. This electrode is coated on a pure titanium substrate with platinum group precious metal oxides with high electrocatalytic performance, strong oxidation resistance, and good electrical conductivity. It is an insoluble anode. The characteristics of this anode are:
(1) Titanium has the characteristics of light specific gravity, good strength, corrosion resistance, and good performance. Especially, its resistance to wet chlorine is incomparable to other metal materials. For example, when there is a trace amount of chloride ion in the electrolysis of water, the stainless steel plate will quickly suffer pitting corrosion, shortening the electrode life. However, titanium does not have these problems.
(2) Due to the addition of various platinum group precious metals in the coating, it has high current efficiency, good electrical conductivity, good electrocatalytic performance, strong oxidation resistance, long working life, and energy saving.
(3) The electrolytic cell for electrolyzed water machines independently developed and produced by our company has been widely used in household electrolyzed water machines and disinfection water machines, and has been promoted and used in large water plants. Inside, it is equipped with ruthenium-iridium coated titanium electrodes and platinum-plated titanium electrodes, and imported ion exchange membranes. It has stable electrolysis effects, low energy efficiency, and long service life.
